Workspace

Workspace

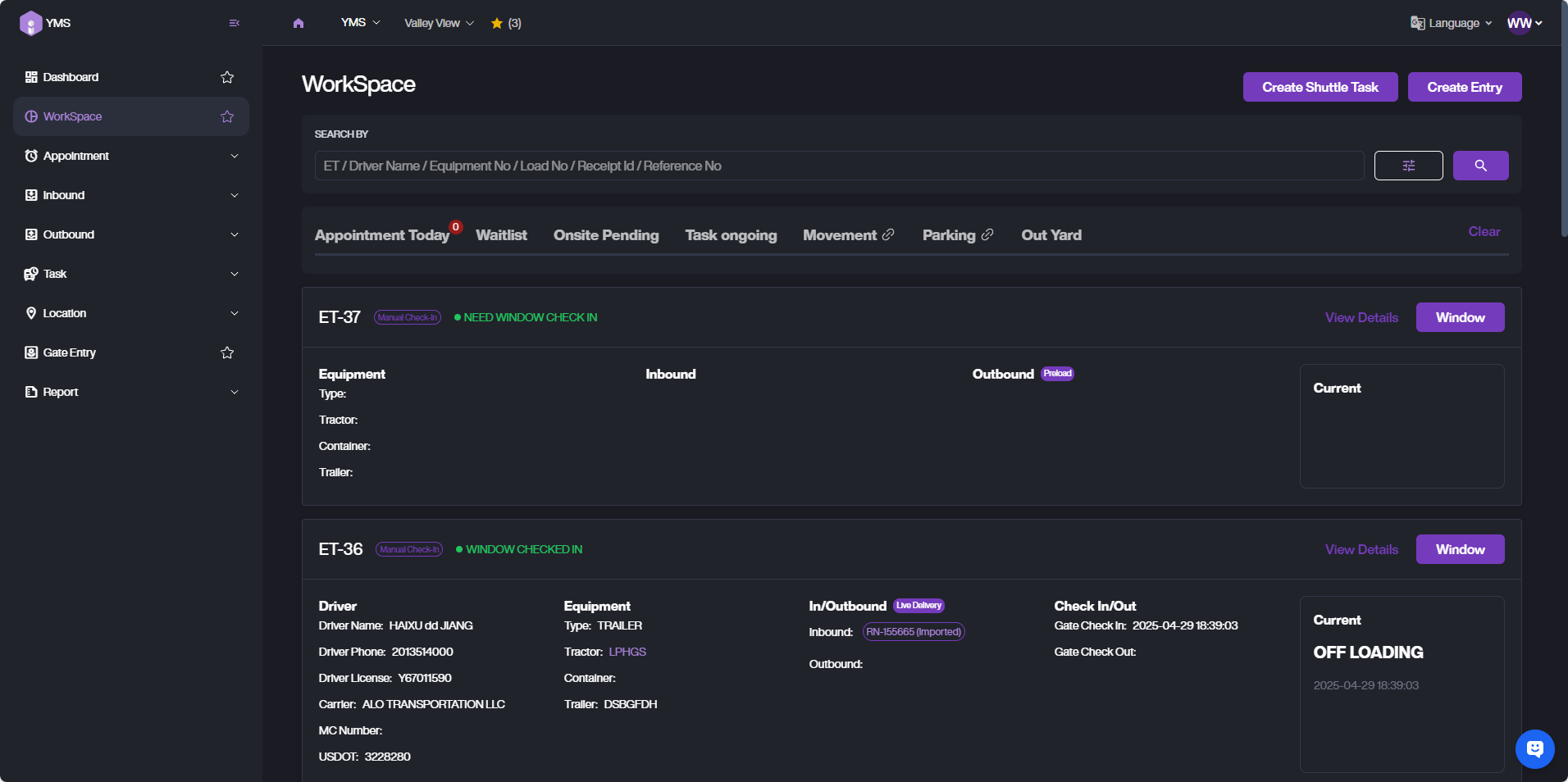

The Workspace page provides a real-time overview of yard activities and appointment statuses. Users can search, filter, and manage ongoing operations.

migration:yms/web/Picture17.png

At the top of the Workspace page, Click the filter icon to switch between Quick Search and Advanced Search.

migration:yms/web/Picture18.png

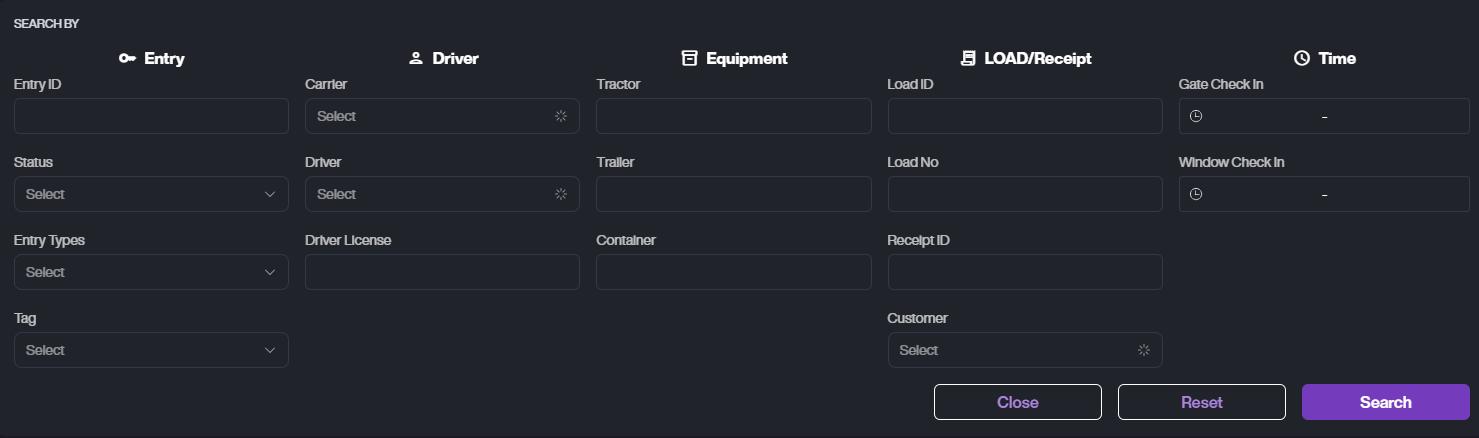

You can search using:

  • ET Number

  • Driver Name

  • Equipment Number

  • Load Number

  • Receipt ID

  • Reference Number

  • Entry Info: Entry IDs, Status, Type, Tag

  • Driver: Carrier, Driver, License

  • Equipment: Tractor, Trailer, Container

  • Load/Receipt: Load ID, Load No, Receipt ID, Customer

  • Time: Gate Check-In, Window Check-In

migration:yms/web/Picture19.png

Workspace List

At the top of the Workspace page, Click the filter icon to switch between Quick Search and Advanced Search.

Tabs

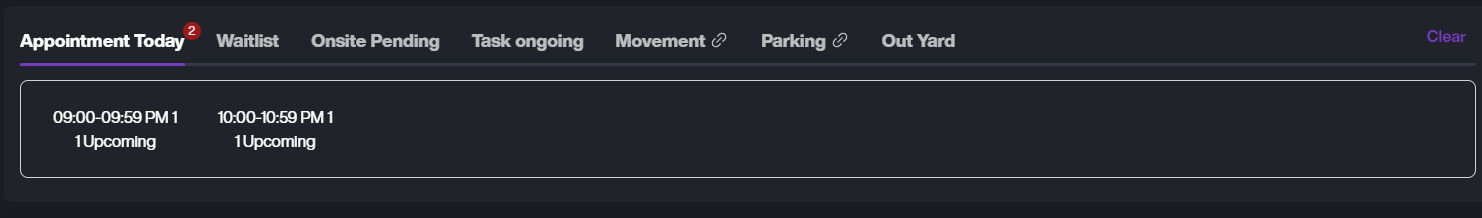

  • Appointment Today: Show today's upcoming appointments.

migration:yms/web/Picture20.png

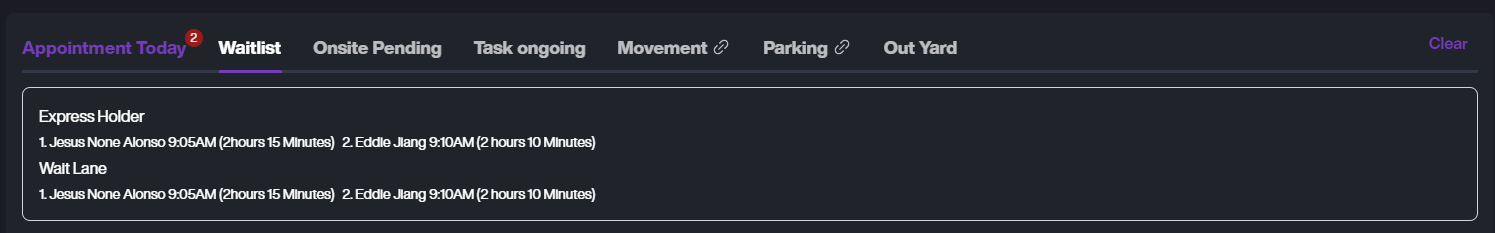

  • Waitlist: Filter by waiting ETs.

migration:yms/web/Picture21.png

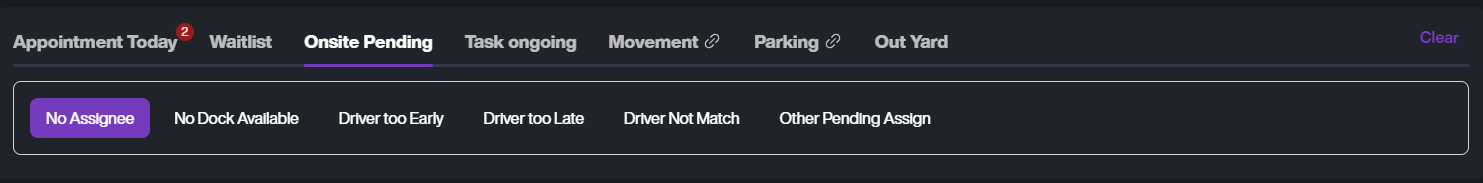

  • Onsite Pending: Filter by: No Assignee, No Dock, Driver Too Early/Late, Driver Not Match, Other Pending.

migration:yms/web/Picture22.png

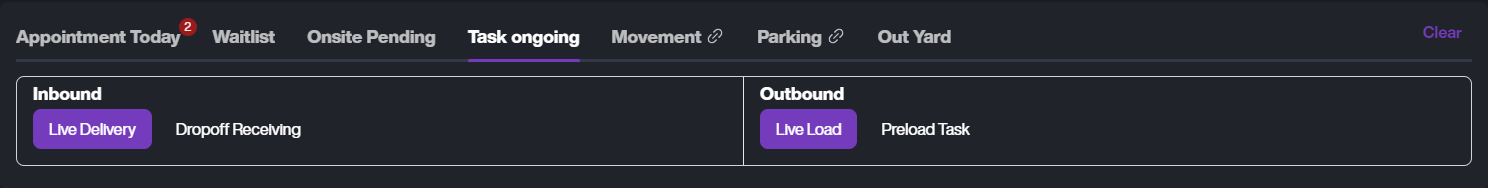

  • Task Ongoing: Filter by Inbound/Outbound actions.

migration:yms/web/Picture23.png

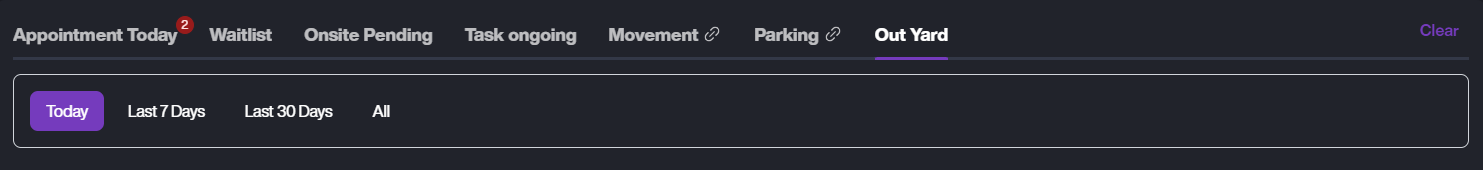

  • Out Yard: Filter by Exit Time.

migration:yms/web/Picture24.png

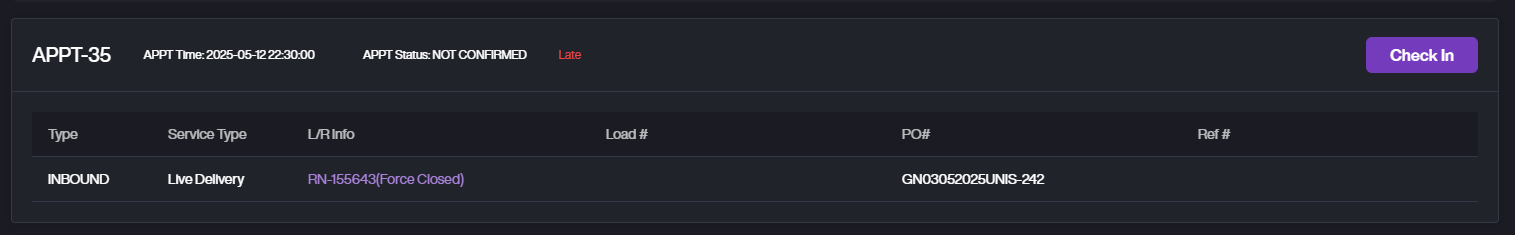

Appointment Card

  • APPT Info: Appointment ID, Time, Status

  • Service Type: Inbound / Outbound + Action

  • L/R Info: Linked RN or Load ID

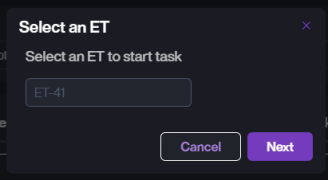

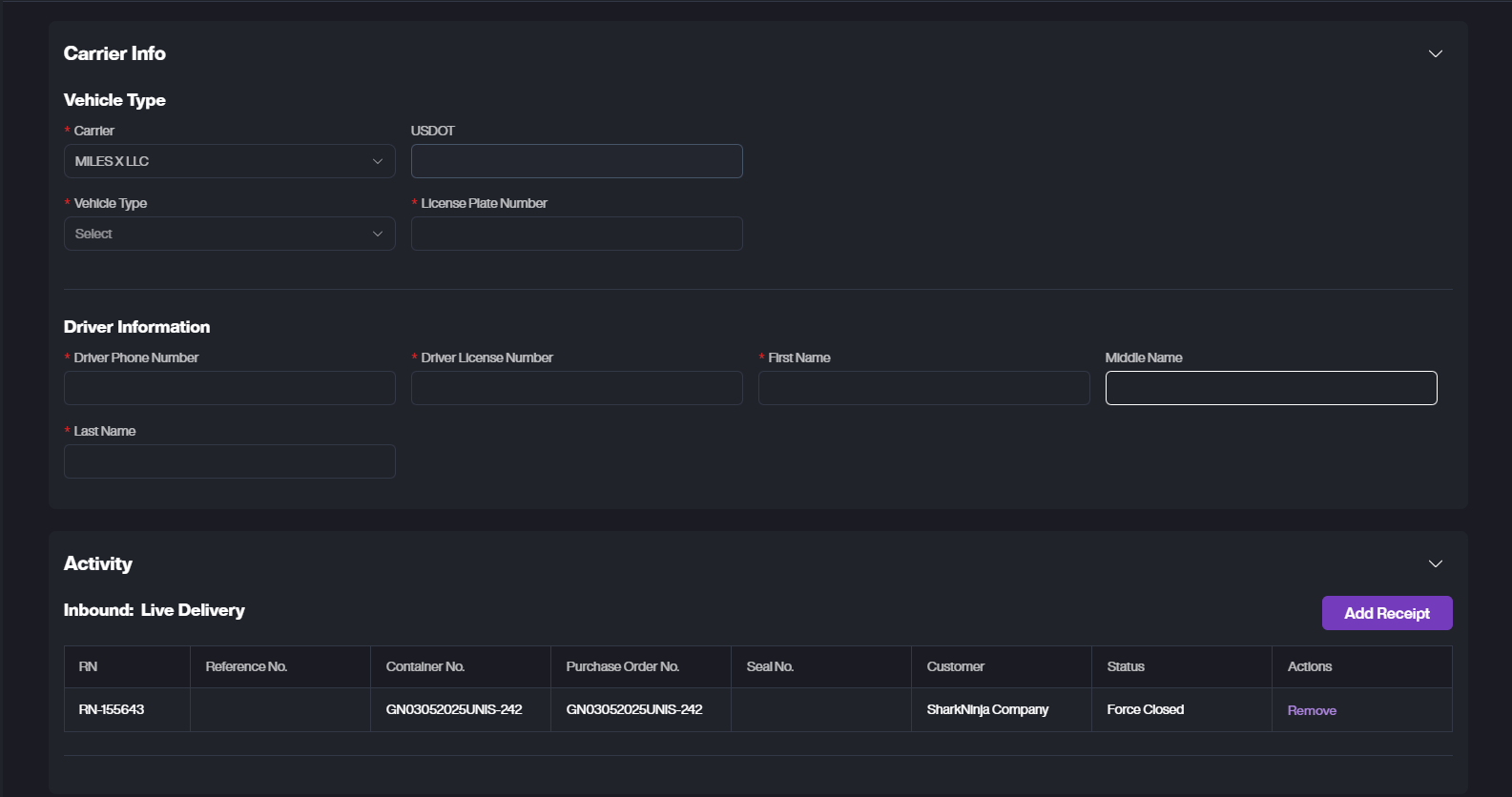

  • Check In Button: Click to create an ET for the selected APPT.

migration:yms/web/Picture25.png migration:yms/web/Picture26.png migration:yms/web/Picture27.png

Entry Card

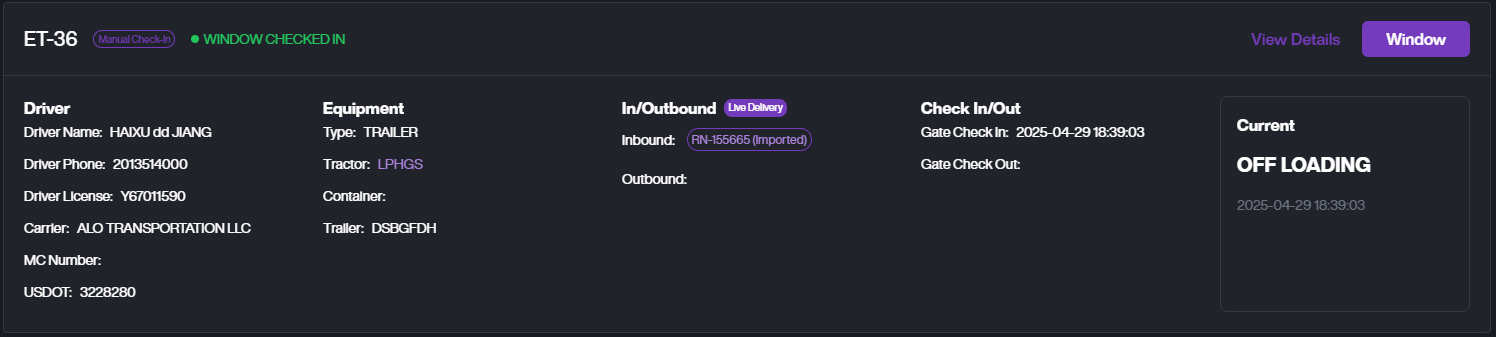

1. You can view the ET's Driver info, Equipment info, In/Outbound Action, Check In/Out Time, and Current Status.

migration:yms/web/Picture28.png

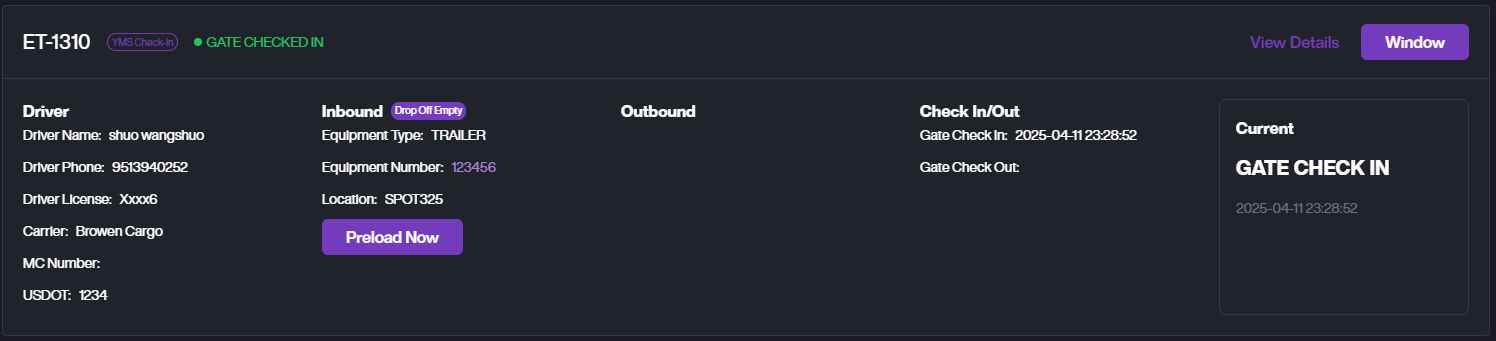

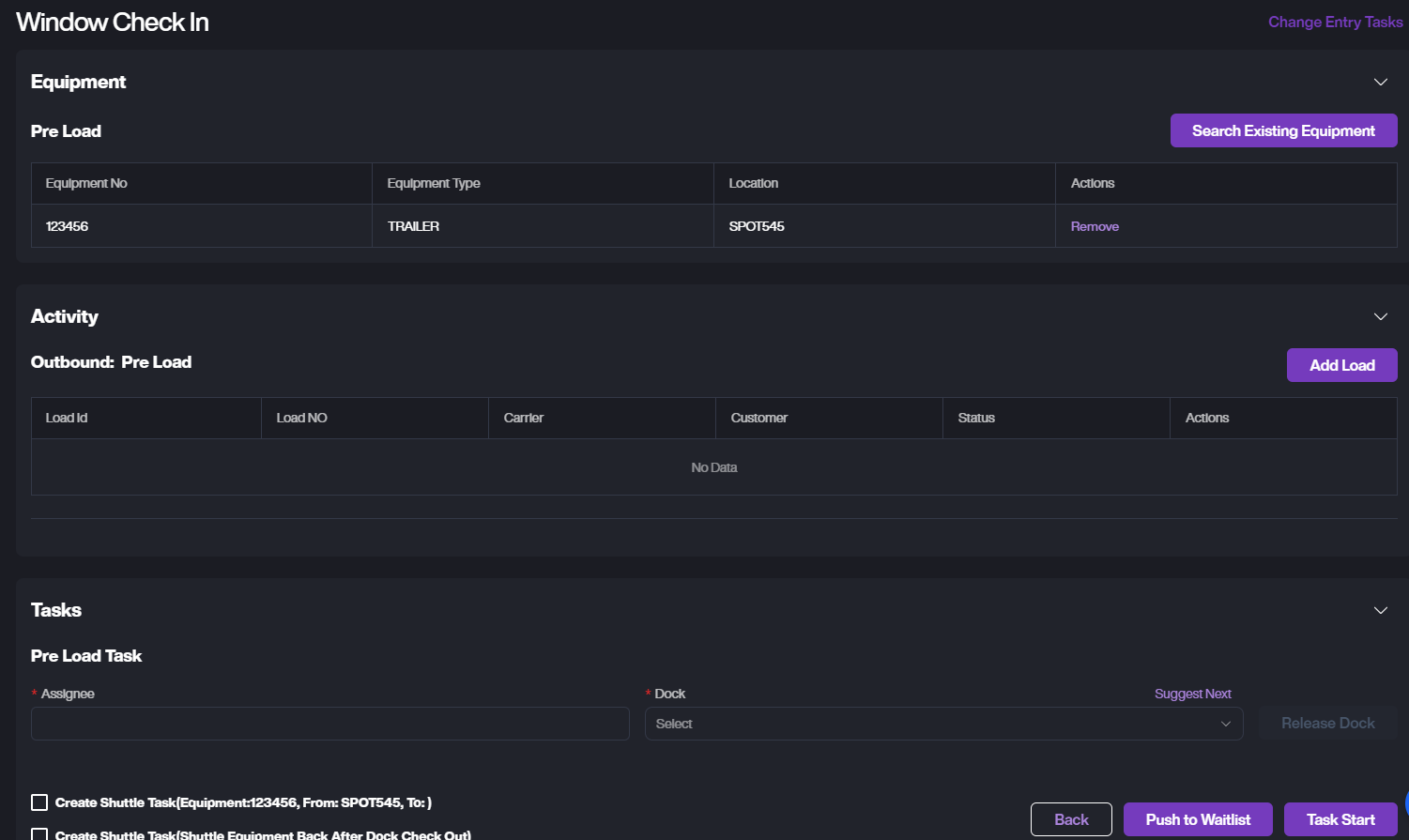

2. If the Inbound Action is Drop off Empty, you will see a Preload Now button. Clicking it will create a Load Task based on this ET.

migration:yms/web/Picture29.png migration:yms/web/Picture30.png

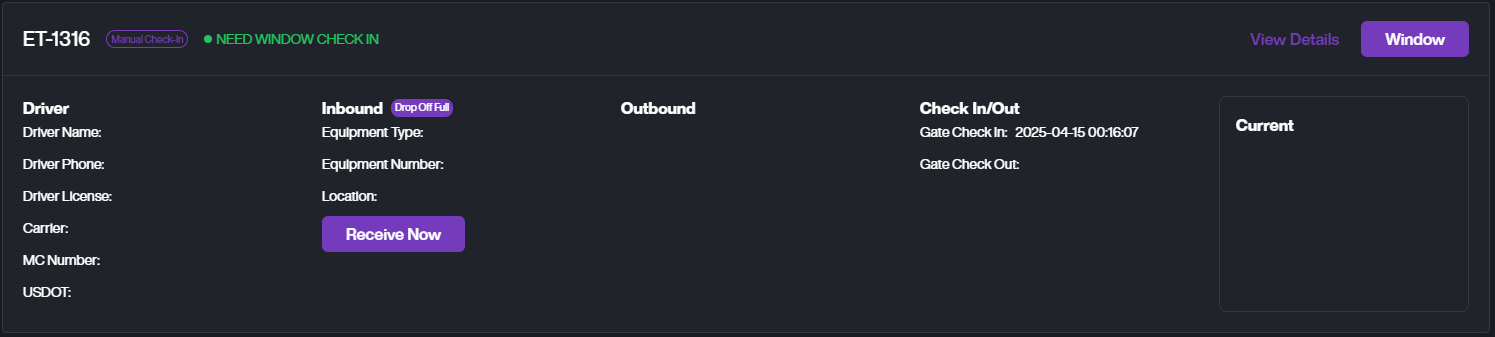

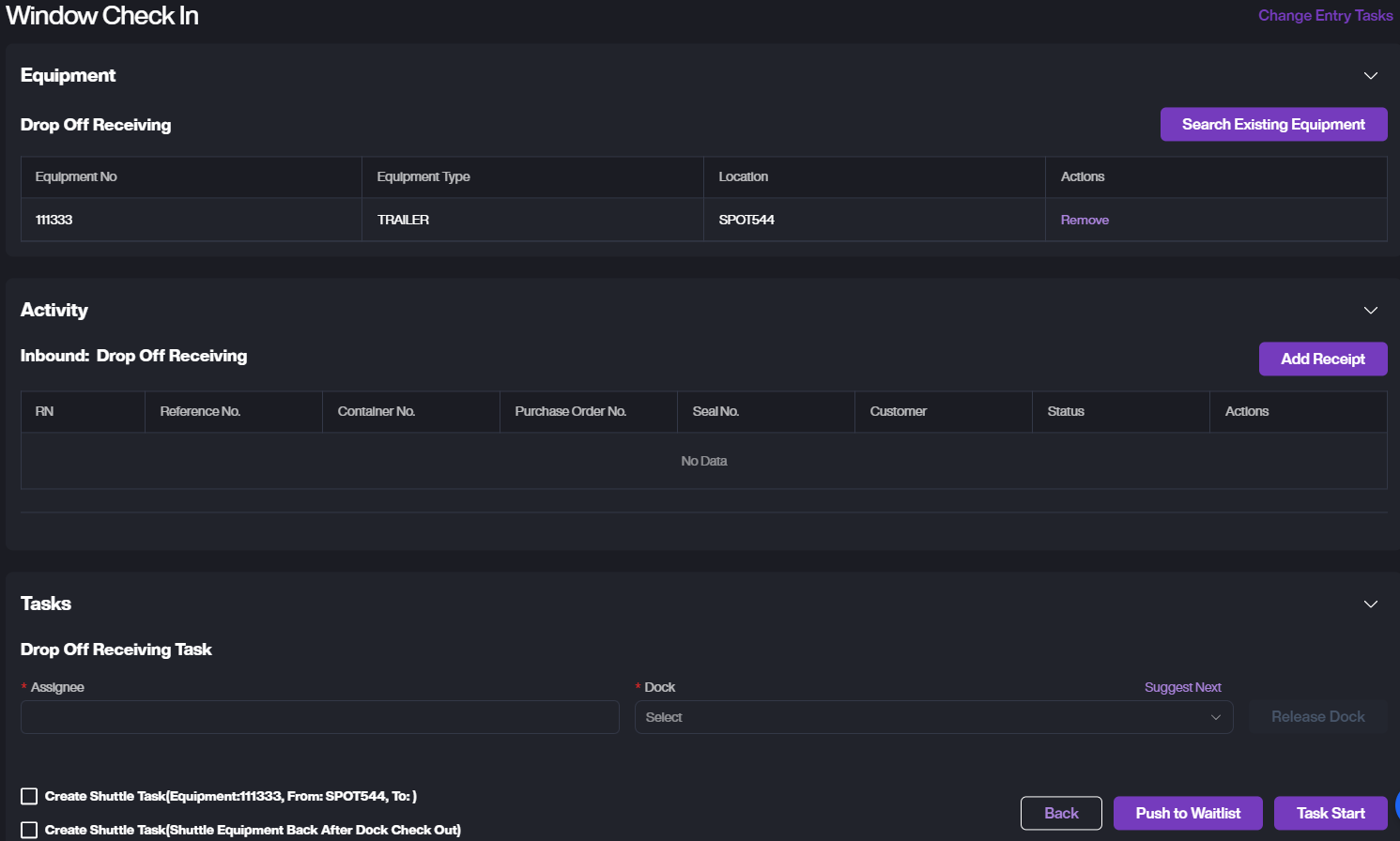

3. If the Inbound Action is Drop off Full, you will see a Receive Now button. Clicking it will create a Receive Task based on this ET.

migration:yms/web/Picture31.png migration:yms/web/Picture32.png

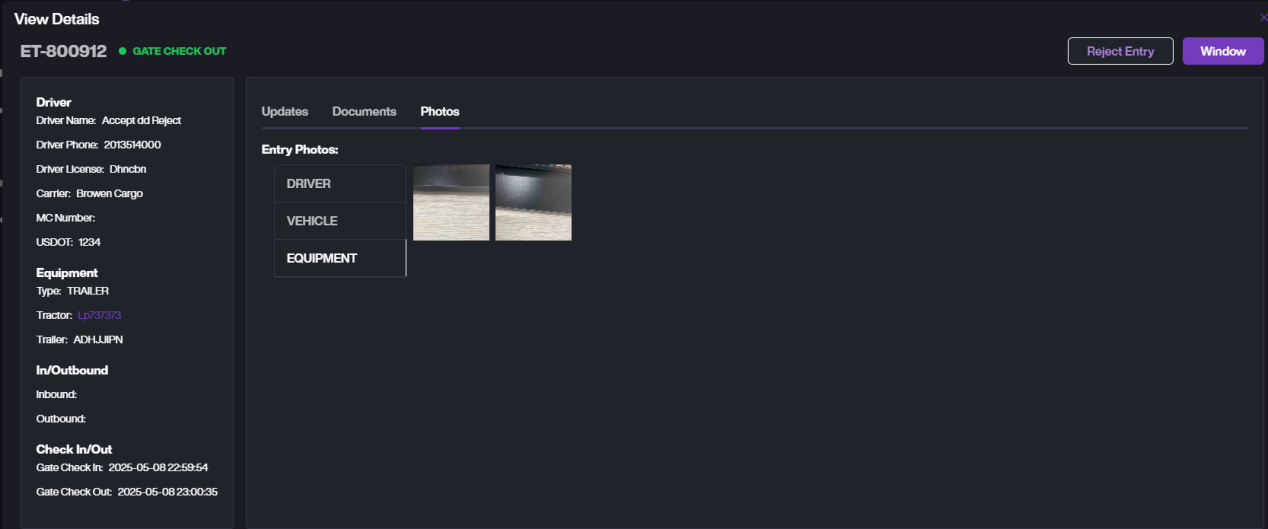

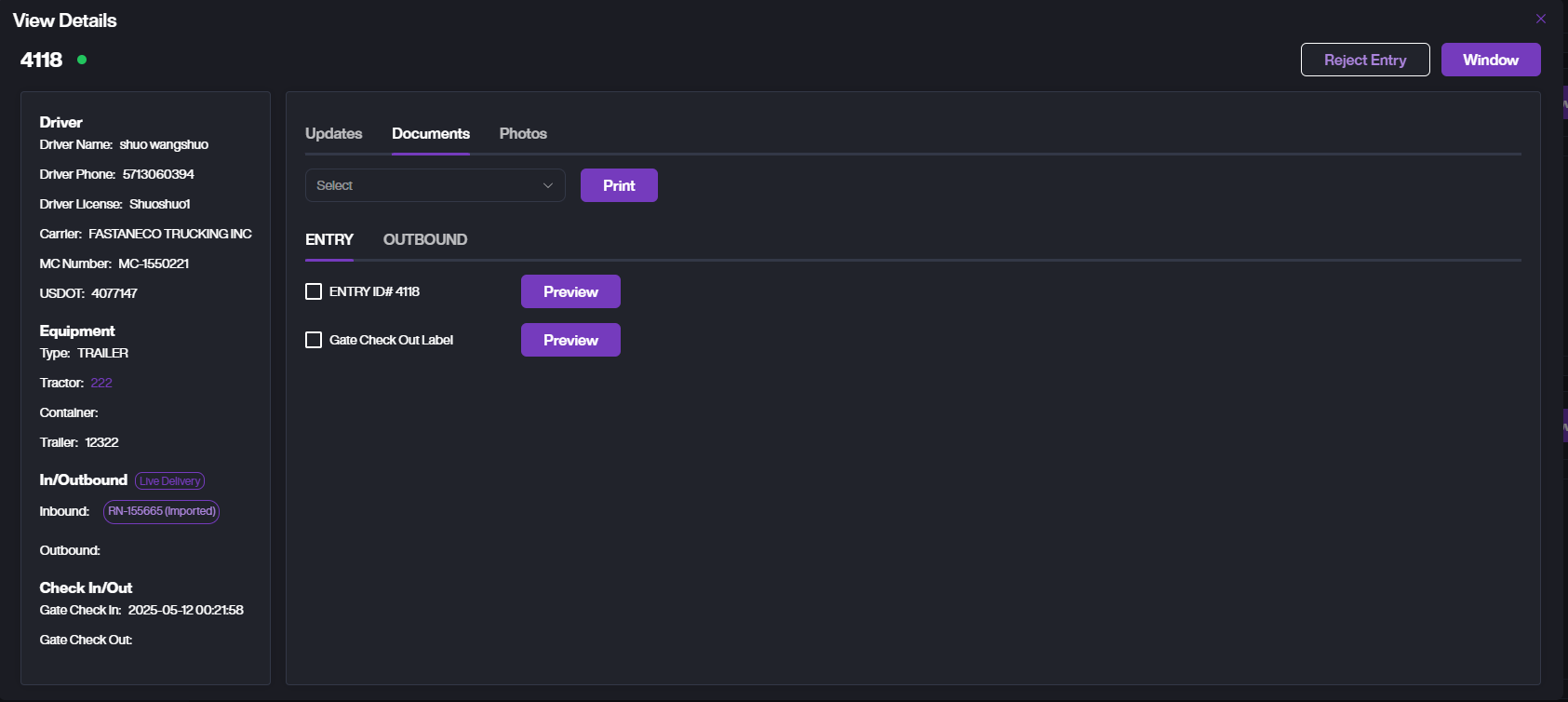

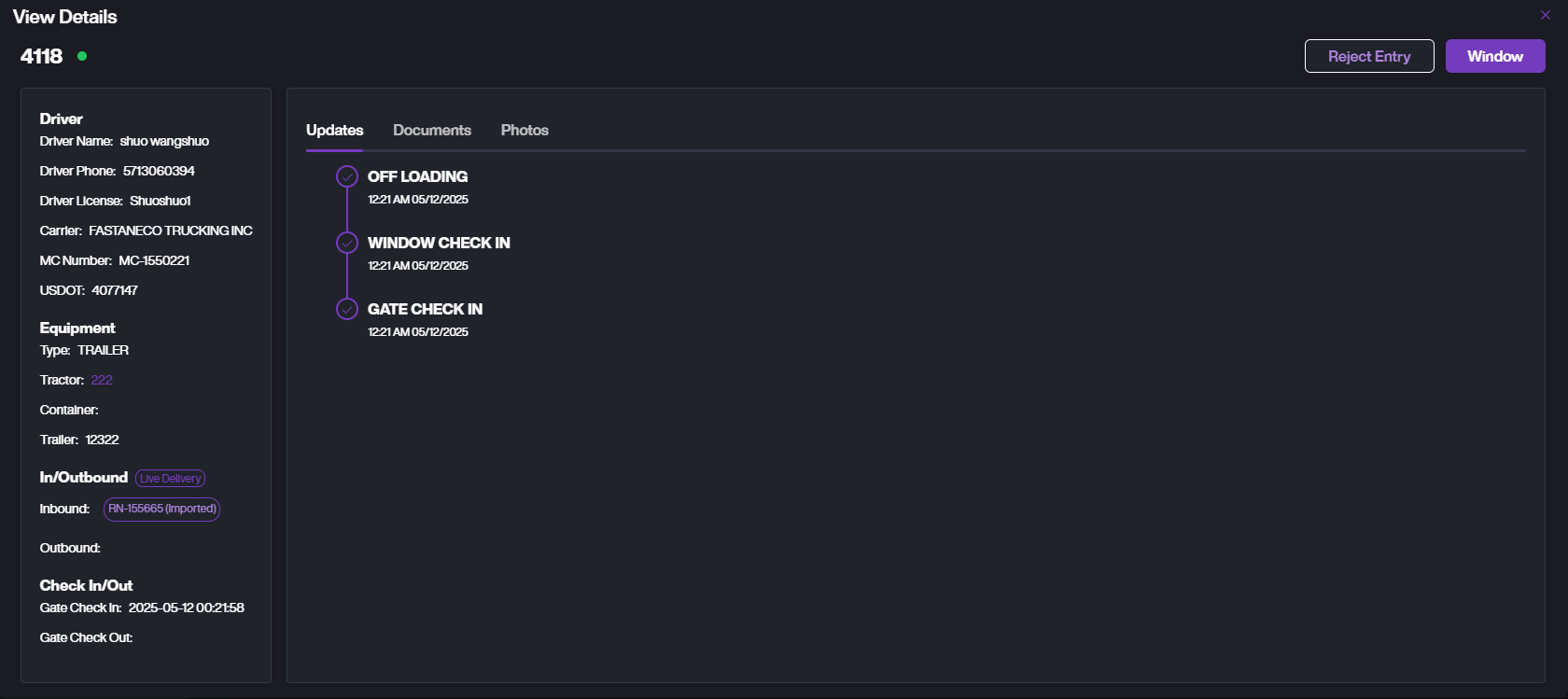

4. View Details. Tap View Details, Click View Details to see the ET details, including the task timeline, documents, and entry photos.

migration:yms/web/Picture33.png migration:yms/web/Picture34.png migration:yms/web/Picture35.png

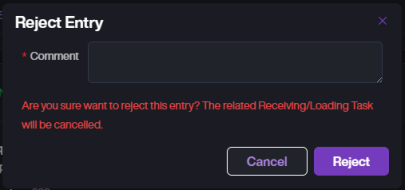

If you need to reject this ET, click Reject Entry to reject and close it.

migration:yms/web/Picture36.png

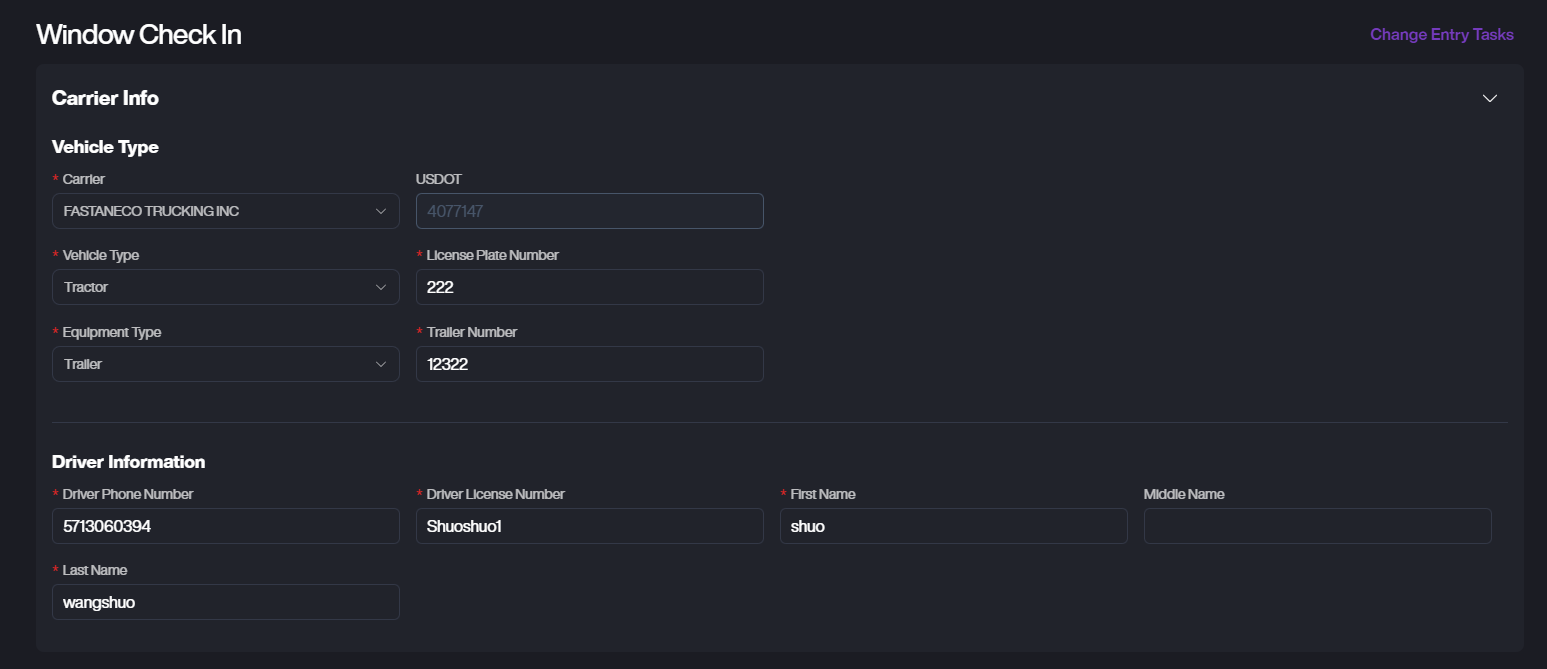

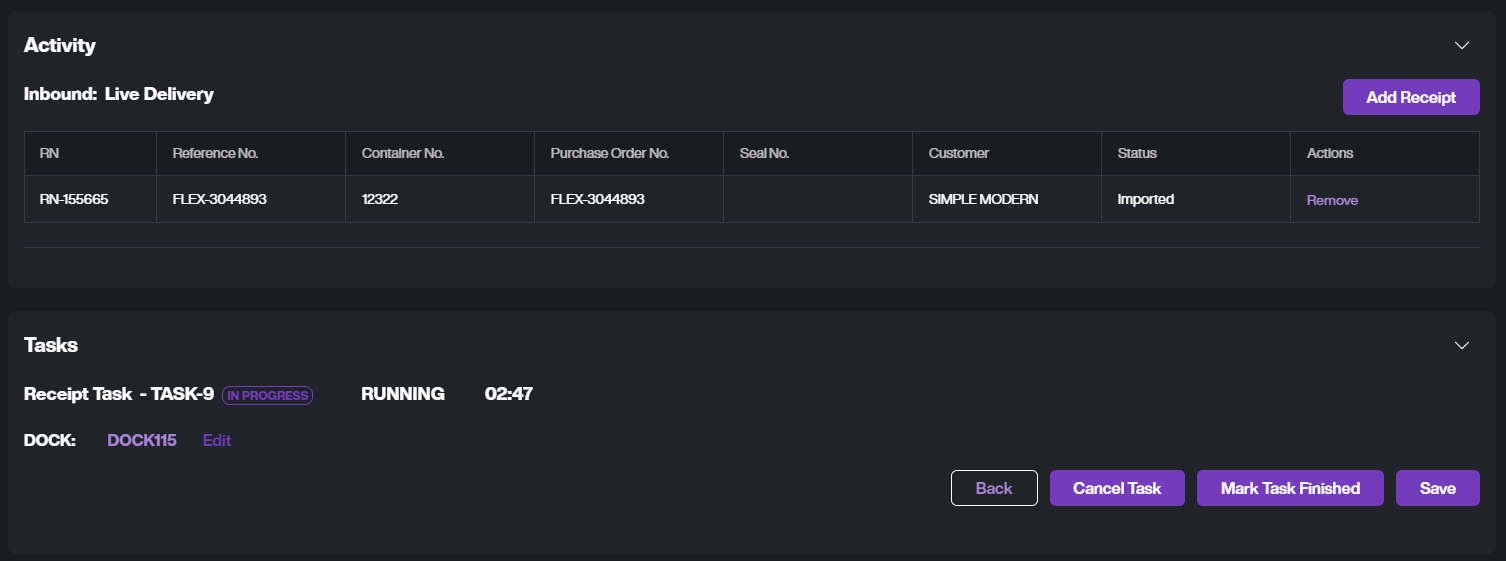

Click Window to perform operations such as task creation and location assignment for the ET at the window.

migration:yms/web/Picture37.png migration:yms/web/Picture38.png

Create Entry

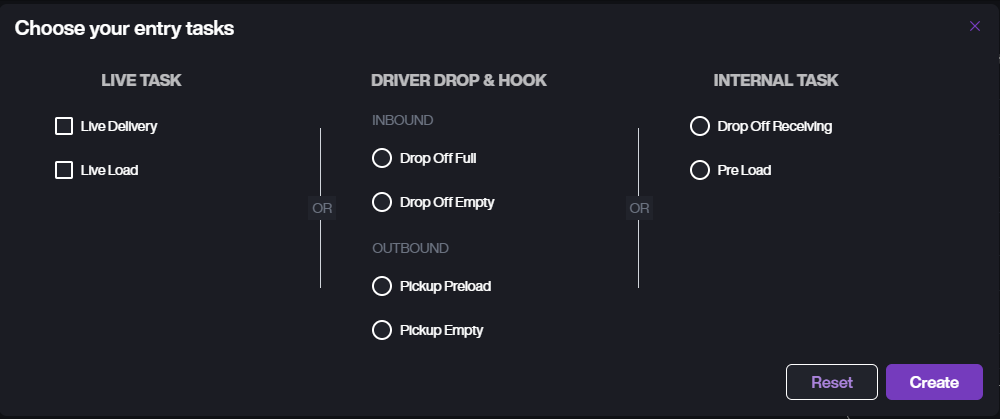

1. Choose entry tasks.

migration:yms/web/Picture39.png

A. Live Task a. Live Delivery: The driver completes unloading on site. b. Live Load: The driver completes loading on site.

B. Drop & Hook a. Drop off Full: The driver drops off a full container and leaves. b. Drop off Empty: The driver drops off an empty container and leaves. c. Pickup Preload: The driver picks up a preloaded unit. d. Pickup Empty: The driver picks up an empty unit.

C. Internal Task a. Drop off Receiving: In-yard unloading task. b. Preload: In-yard loading task.

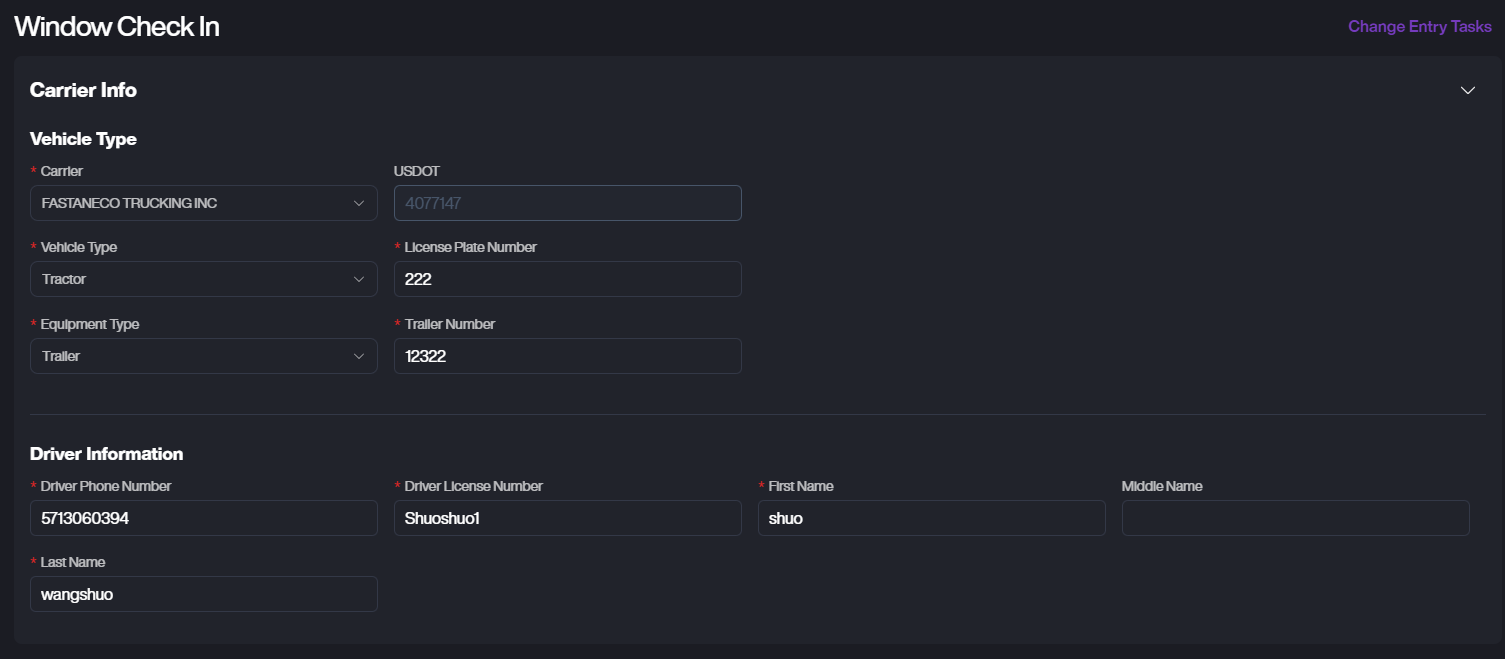

2. Window Check In

A. Enter driver and vehicle information.

migration:yms/web/Picture40.png

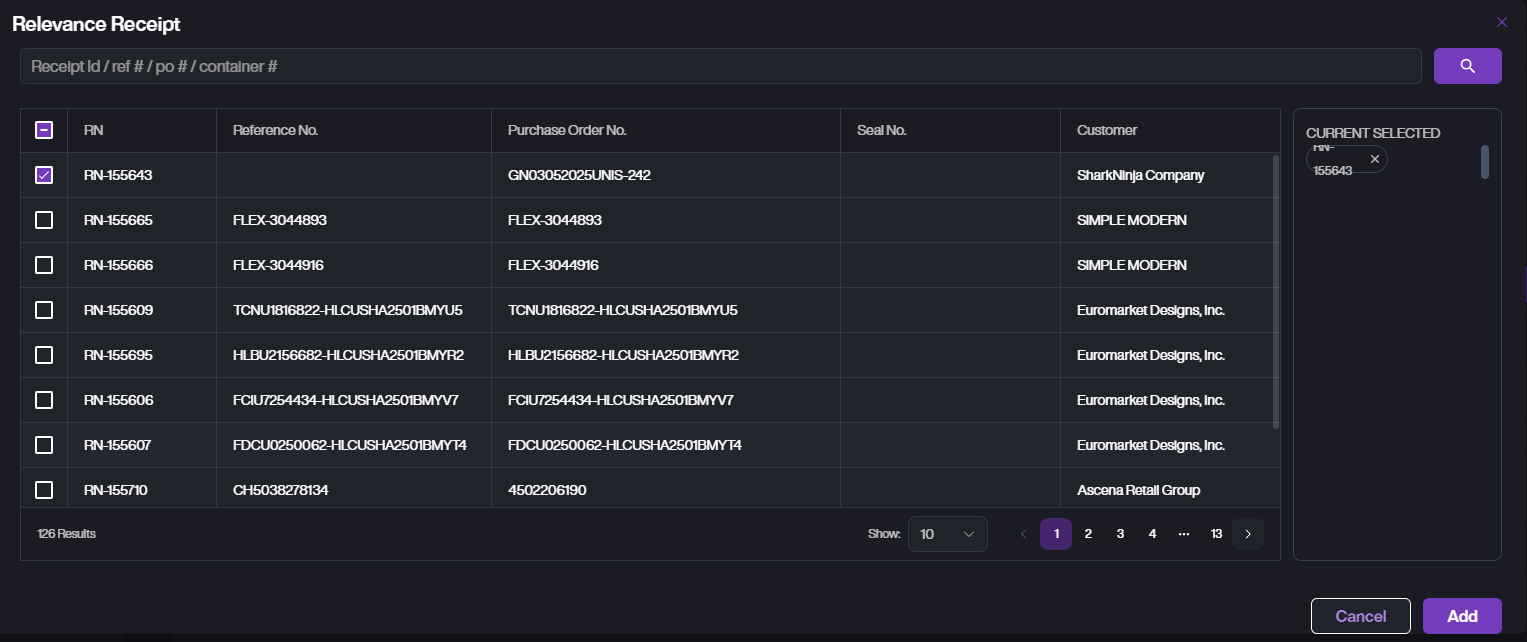

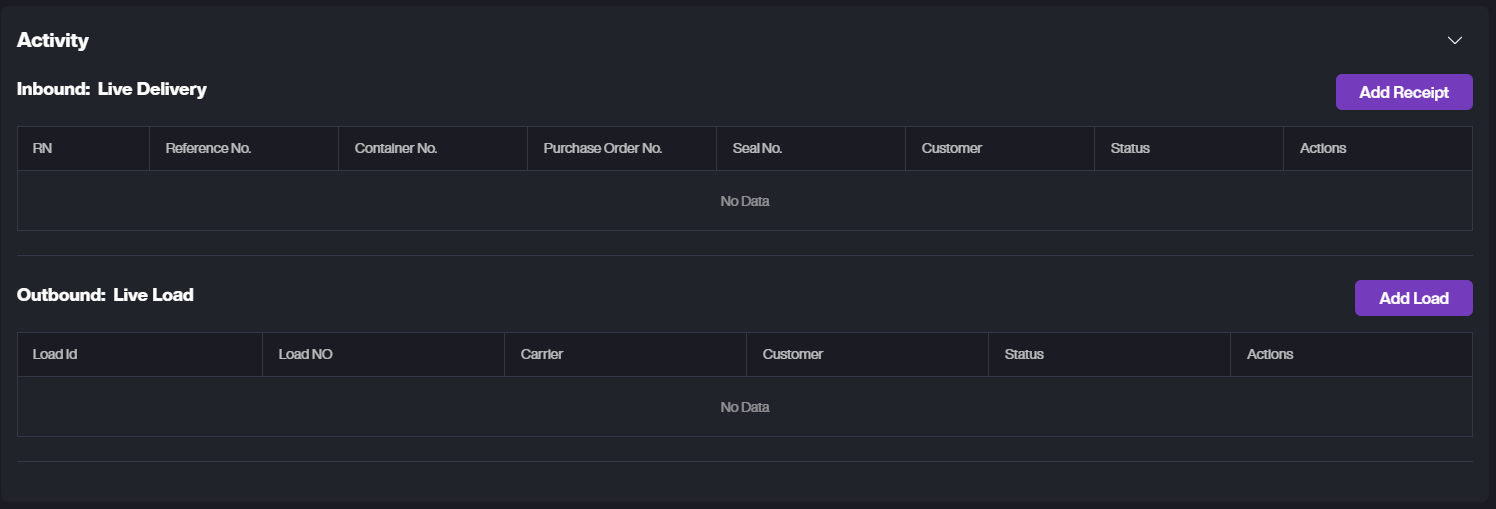

B. Select receiving RNs (multiple selectable).

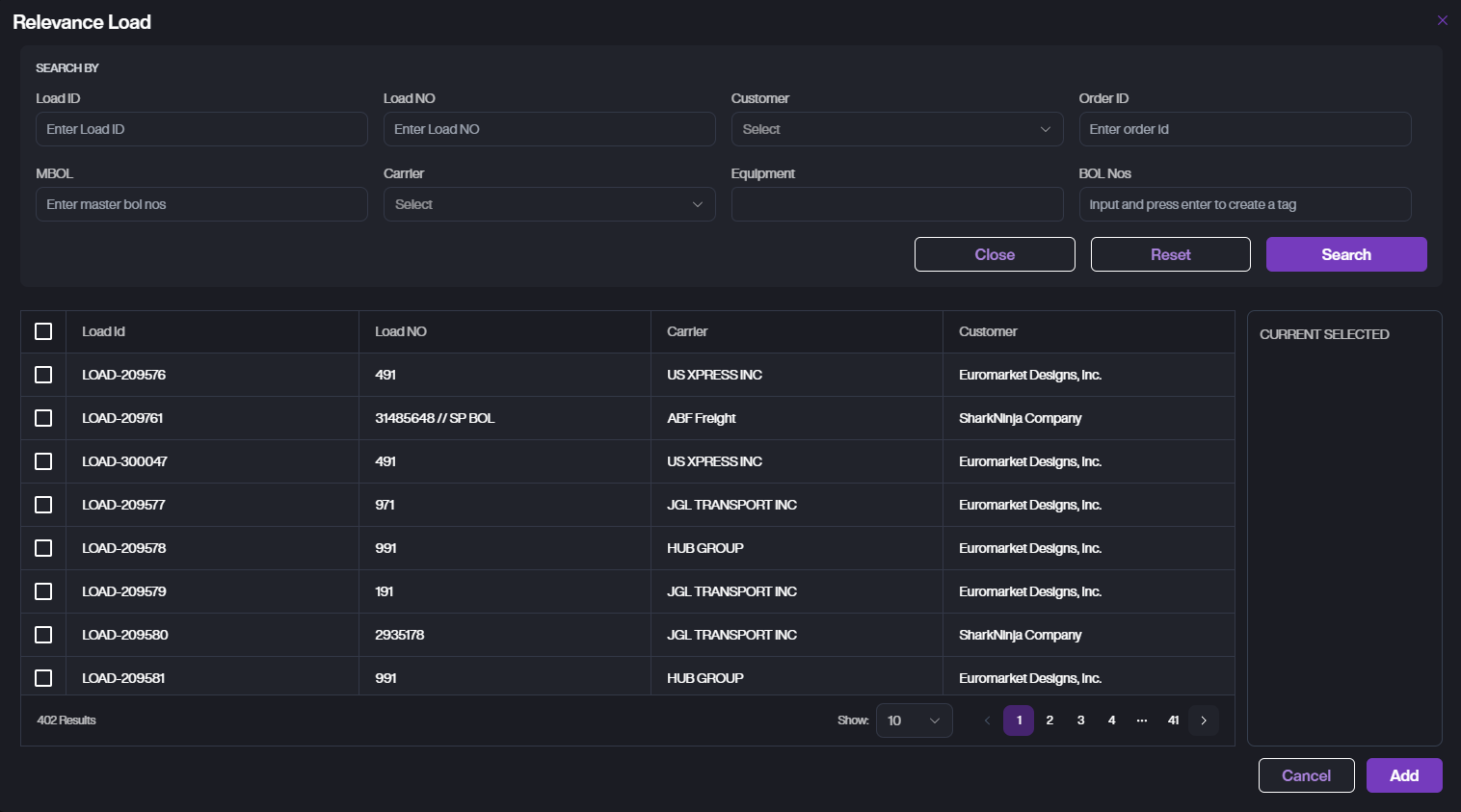

C. Select outbound Loads (multiple selectable).

migration:yms/web/Picture41.png migration:yms/web/Picture42.png migration:yms/web/Picture43.png

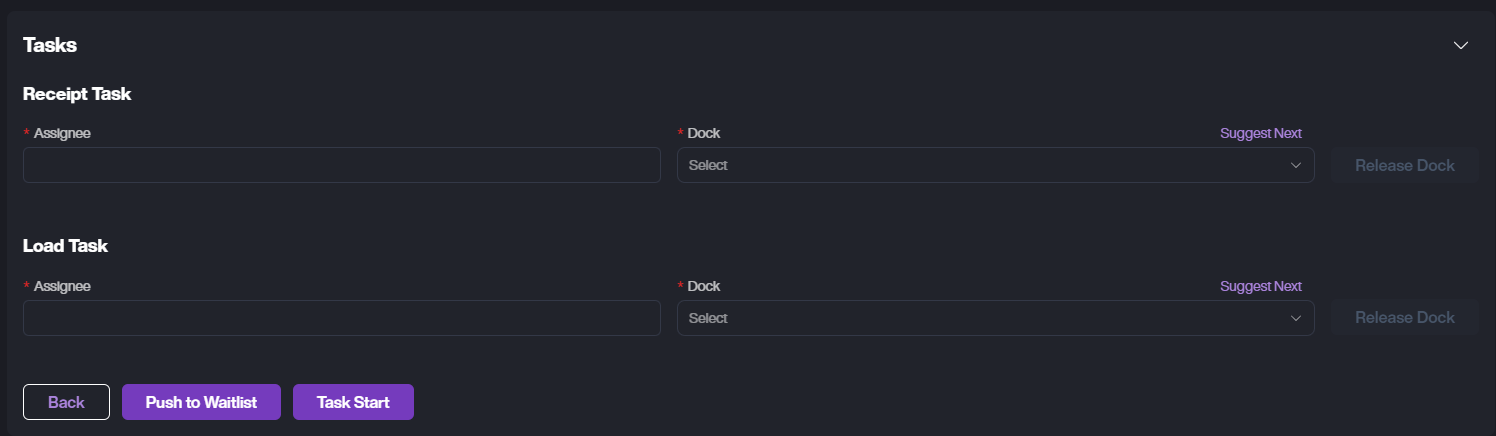

D. Create Receipt Task: Assign a handler, select a location, or use Suggest Next to automatically get a suitable location.

E. Create Load Task: Assign a handler, select a location, or use Suggest Next to automatically get a suitable location.

migration:yms/web/Picture44.png

F. Click Task Start. You can complete the Window Check-in and start the Load or Receipt task.
