YMS Webhook Integration Guide

1. Overview

YMS (Yard Management System) provides a Webhook notification service. When critical business events occur within the yard (such as vehicle check-in or check-out), the system automatically pushes notifications to your designated endpoint. Your WMS or business system can receive these event notifications in real time, enabling efficient inter-system collaboration.

2. Prerequisites

Before configuring, please confirm the following:

You have administrator access to the YMS system
You have prepared a publicly accessible HTTPS endpoint
Your endpoint can handle HTTP POST requests and return a 2xx status code upon successful processing

3. Configuring Webhooks

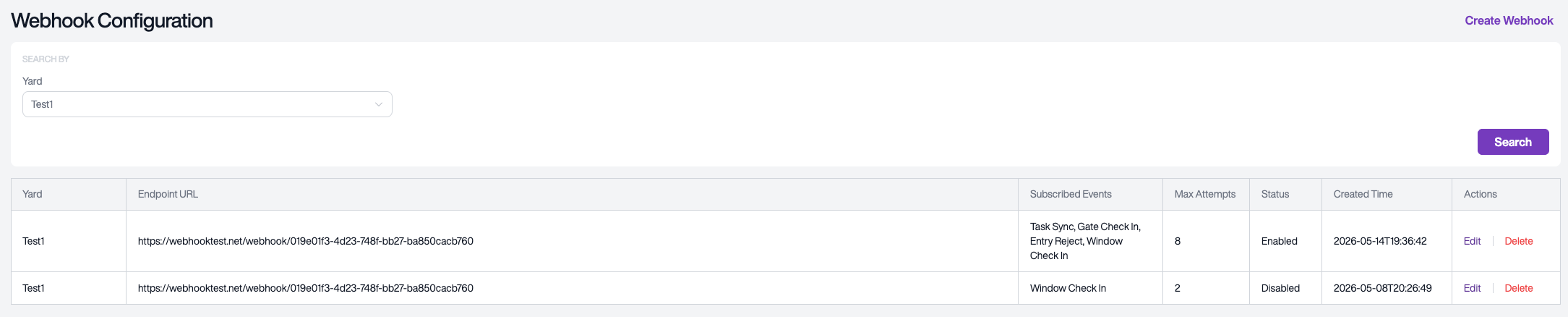

3.1 Accessing the Configuration Page

On this page, you can view all configured Webhooks, including the associated yard, endpoint URL, subscribed events, status, and other details.

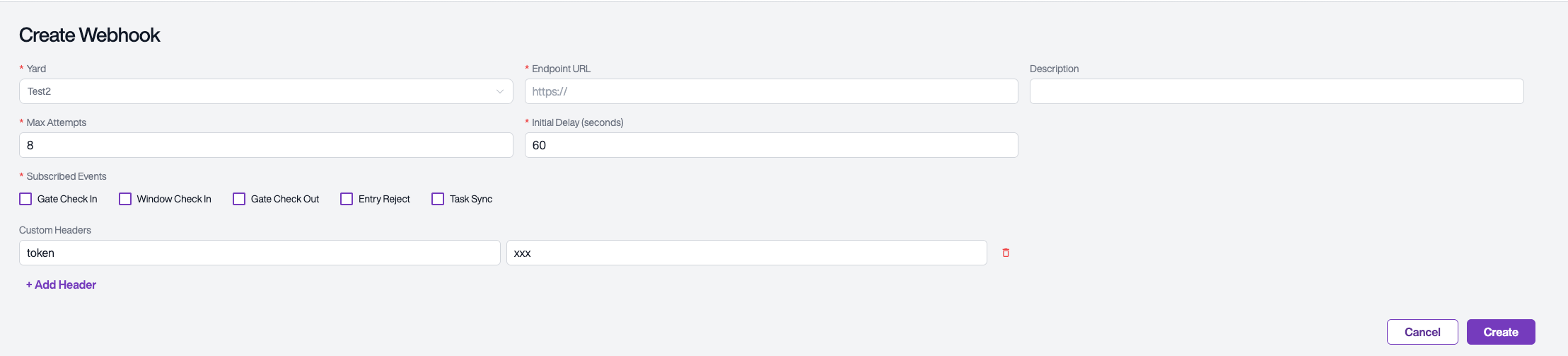

3.2 Creating a Webhook

Click the Create Webhook button in the upper-right corner to open the creation page.

Fill in the configuration fields as described below:

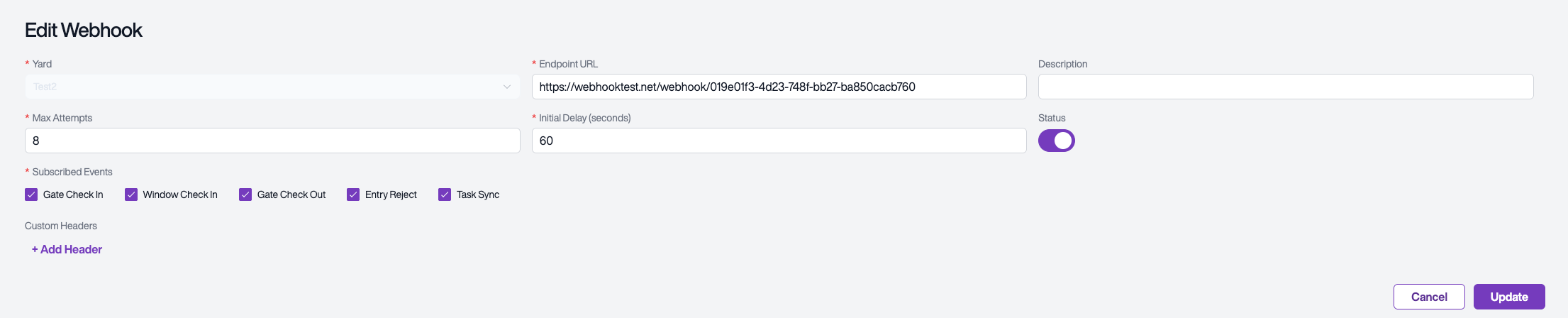

3.3 Editing a Webhook

Click Edit on a list entry to open the edit page, where you can modify existing configurations. The edit page also provides a Status toggle to enable or disable the Webhook.

Field	Required	Description
Yard	Yes	Select the yard to receive notifications for
Endpoint URL	Yes	Your receiving endpoint; must use HTTPS
Description	No	Configuration description for identification and management
Subscribed Events	Yes	Select the event types to subscribe to (multiple selection allowed)
Max Attempts	Yes	Maximum retry attempts on delivery failure (1-20, default 8)
Initial Delay Seconds	Yes	Wait time before the first retry, in seconds (10-86400, default 60)
Custom Headers	No	Custom request headers, can be used for authentication

3.4 Supported Event Types

Event Type	Trigger	Notification Method
GATECHECKIN	Vehicle completes check-in at the gate	Asynchronous notification
WINDOWCHECKIN	Vehicle arrives at the dock and completes check-in	Asynchronous notification
GATECHECKOUT	Vehicle completes check-out at the gate	Asynchronous notification
ENTRY_REJECT	Vehicle entry request is rejected	Asynchronous notification
TASK_SYNC	Task creation/update/cancellation sync	Synchronous call

Note: TASKSYNC differs from other events — it is a synchronous call**. When YMS creates, updates, or cancels a task, it calls your endpoint in real time and waits for a response. Your system must return a result in the specified format; otherwise, the task operation will fail. See Section 4.5 for details.

4. Notification Format

4.1 Request Method

When an event occurs, YMS sends a JSON-formatted notification to your endpoint via HTTP POST.

Please ensure your endpoint responds within 5 seconds; a timeout will be treated as a delivery failure.

4.2 Request Headers

Each notification includes the following standard request headers:

Header	Description
Content-Type	application/json
X-YMS-Event-Id	Unique event identifier, can be used for deduplication
X-Tenant-Id	Tenant identifier
X-Yard-Id	Yard identifier
X-Event-Type	Event type (e.g., GATECHECKIN)
X-Timestamp	Notification send time

If you configured Custom Headers in your Webhook settings, those custom headers will also be included.

4.3 Notification Payload — Check-In/Check-Out Events

Applies to GATECHECKIN, WINDOWCHECKIN, and GATECHECKOUT events:

Field Descriptions:

Field	Type	Description
entryId	String	Unique entry record identifier
appointmentId	String	Associated appointment identifier
vehicleId	String	Vehicle identifier
checkinTime	String	Check-in time
checkoutTime	String	Check-out time
entryStatus	String	Current entry status (see enum values below)
inboundAction	String	Inbound action type (see enum values below)
inboundReceiptIds	Array	List of inbound receipt numbers
inboundCustomerIds	Array	List of inbound customer identifiers
inboundCustomerNames	Array	List of inbound customer names
inboundTaskId	String	Inbound task identifier
outboundAction	String	Outbound action type (see enum values below)
outboundLoadIds	Array	List of outbound load numbers
outboundCustomerIds	Array	List of outbound customer identifiers
outboundCustomerNames	Array	List of outbound customer names
outboundTaskId	String	Outbound task identifier
inYardAction	String	In-yard action type (see enum values below)
carrierId	String	Carrier identifier
carrierName	String	Carrier name
driverId	String	Driver identifier
driverName	String	Driver name
driverPhone	String	Driver phone number
driverLicense	String	Driver license number
licensePlate	String	License plate number
equipmentNo	String	Trailer/equipment number
equipmentType	String	Equipment type (see enum values below)
sealNo	String	Seal number
receiptType	String	Receipt type: REGULARRECEIPT / MATERIALRECEIVE / RETURN
dropOffLocationName	String	Drop-off location name
dropOffLocationId	String	Drop-off location identifier
pickUpLocationName	String	Pick-up location name
pickUpLocationId	String	Pick-up location identifier

Tip: Some fields may be null depending on the actual business scenario. Please handle null values appropriately on your receiving end.

Enum Value Reference

entryStatus (Entry Status):

Value	Description
NEW	New
PRE_ENTRY	Pre-entry
GATECHECKEDIN	Gate checked in
WAITING	Waiting
NEEDWINDOWCHECK_IN	Pending dock check-in
WINDOWCHECKEDIN	Dock checked in
DOCKCHECKEDIN	Docked
DOCKCHECKEDOUT	Undocked
GATECHECKEDOUT	Gate checked out
REJECTED	Rejected
DROPPINGOFFDELIVERY	Dropping off loaded trailer
DROPPINGOFFEMPTY	Dropping off empty trailer
PICKINGUPPRELOAD	Picking up preloaded trailer
PICKINGUPEMPTY	Picking up empty trailer
FORCECHECKEDOUT	Force checked out

inboundAction (Inbound Action):

Value	Description
LIVE_DELIVERY	Live delivery
DROPOFFDELIVERY	Drop off loaded trailer
DROPOFFEMPTY	Drop off empty trailer
OTHER	Other

outboundAction (Outbound Action):

Value	Description
LIVE_LOAD	Live load
PICKUPPRELOAD	Pick up preloaded trailer
PICKUPEMPTY	Pick up empty trailer
OTHER	Other

inYardAction (In-Yard Action):

Value	Description
DROPOFFRECEIVING	Drop off for receiving
PRE_LOAD	Preload
PARKING	Parking
VISITOR	Visitor

equipmentType (Equipment Type):

Value	Description
VEHICLE	Vehicle
TRAILER	Trailer
CHASSIS	Chassis
CONTAINER	Container
FLATBED	Flatbed
OTHER	Other

4.4 Notification Payload — Task Sync Event (TASK_SYNC)

TASKSYNC is a synchronous call** event, fundamentally different from other asynchronous notification events:

Comparison	Asynchronous Notification Events	TASK_SYNC
Call method	Asynchronous push, does not affect business flow	Synchronous call, waits for your system's response
Response requirement	Return 2xx is sufficient	Must return a JSON response body in the specified format
Failure impact	Auto-retries, does not affect business	Call failure causes the corresponding task operation in YMS to fail
Retry mechanism	Auto-retry (up to N times)	No auto-retry, returns failure immediately

When YMS needs to create, update, or cancel a task, it calls your endpoint in real time and determines whether the task operation succeeds based on your response.

Request Payload

Field Descriptions:

Field	Type	Description
taskId	String	Task identifier generated by YMS
entryId	String	Associated entry record identifier
taskType	String	Task type: RECEIVE (receiving) or LOAD (loading)
receiptIds	Array	List of receipt numbers (provided for receiving tasks)
loadIds	Array	List of load numbers (provided for loading tasks)
operate	String	Operation type: CREATE / UPDATE / CANCEL
dockId	String	Assigned dock identifier
dockName	String	Dock name
equipmentNo	String	Trailer/equipment number
equipmentType	String	Equipment type
loadMode	String	Load mode: LIVELOAD / PRELOAD
receiptType	String	Receipt type: REGULARRECEIPT / MATERIALRECEIVE / RETURN
assigneeUserId	String	Assigned operator identifier

Some fields may be null depending on the specific task type and operation scenario.

Response Format Requirements

Your system must return a JSON response in the following format; otherwise, YMS will treat the call as failed:

Success Response:

Failure Response:

Response Field Descriptions:

Field	Type	Required	Description
code	Integer	Yes	Business status code
success	Boolean	Yes	Processing result: true for success, false for failure
msg	String	No	Error message on failure
data	Object	No	Response data
data.assigneeUserId	String	No	Actual assigned operator identifier
data.assigneeUserName	String	No	Actual assigned operator name

Determination Rules:

success is true → YMS considers the task operation successful
success is false or the response body is empty → YMS considers the task operation failed, and the operation will be aborted

Request Headers

TASK_SYNC requests include the following standard request headers:

Header	Description
Content-Type	application/json
X-Tenant-Id	Tenant identifier
X-Yard-Id	Yard identifier
X-Facility-Id	Yard identifier (same as X-Yard-Id)
Item-Time-Zone	Timezone information (e.g., Asia/Shanghai)
Authorization	Authentication token (if not configured in Custom Headers)

If you configured Custom Headers in your Webhook settings, those custom headers will also be included.

4.5 Notification Payload — Entry Reject Event

Applies to the ENTRYREJECT event. The payload structure is the same as check-in/check-out events, with entryStatus fixed as REJECTED and an additional rejectReason` field:

Field Descriptions:

Field	Type	Description
entryId	String	Unique entry record identifier
appointmentId	String	Associated appointment identifier
vehicleId	String	Vehicle identifier
checkinTime	String	Check-in time
checkoutTime	String	Check-out time
entryStatus	String	Fixed value: REJECTED
rejectReason	String	Rejection reason
inboundAction	String	Inbound action type
inboundReceiptIds	Array	List of inbound receipt numbers
inboundCustomerIds	Array	List of inbound customer identifiers
inboundCustomerNames	Array	List of inbound customer names
inboundTaskId	String	Inbound task identifier
outboundAction	String	Outbound action type
outboundLoadIds	Array	List of outbound load numbers
outboundCustomerIds	Array	List of outbound customer identifiers
outboundCustomerNames	Array	List of outbound customer names
outboundTaskId	String	Outbound task identifier
inYardAction	String	In-yard action type
carrierId	String	Carrier identifier
carrierName	String	Carrier name
driverId	String	Driver identifier
driverName	String	Driver name
driverPhone	String	Driver phone number
driverLicense	String	Driver license number
licensePlate	String	License plate number
equipmentNo	String	Trailer/equipment number
equipmentType	String	Equipment type
sealNo	String	Seal number
receiptType	String	Receipt type: REGULARRECEIPT / MATERIALRECEIVE / RETURN
dropOffLocationName	String	Drop-off location name
dropOffLocationId	String	Drop-off location identifier
pickUpLocationName	String	Pick-up location name
pickUpLocationId	String	Pick-up location identifier

5. Retry Mechanism

When your endpoint returns a non-2xx status code or the response times out, the system will automatically retry.

The number of retries is determined by the Max Attempts value in your configuration
The retry interval starts at Initial Delay Seconds and doubles with each attempt (exponential backoff)
After exceeding the maximum retry count, the notification will be marked as delivery failed

Retry Interval Example:

Using Initial Delay Seconds = 10 seconds and Max Attempts = 8 as an example:

Retry Attempt	Interval
1st	~10 seconds
2nd	~20 seconds
3rd	~40 seconds
4th	~80 seconds
5th	~160 seconds
6th	~320 seconds
7th	~640 seconds
8th	~1280 seconds

Each retry includes a ±10% random jitter to prevent multiple notifications from retrying simultaneously and causing congestion.

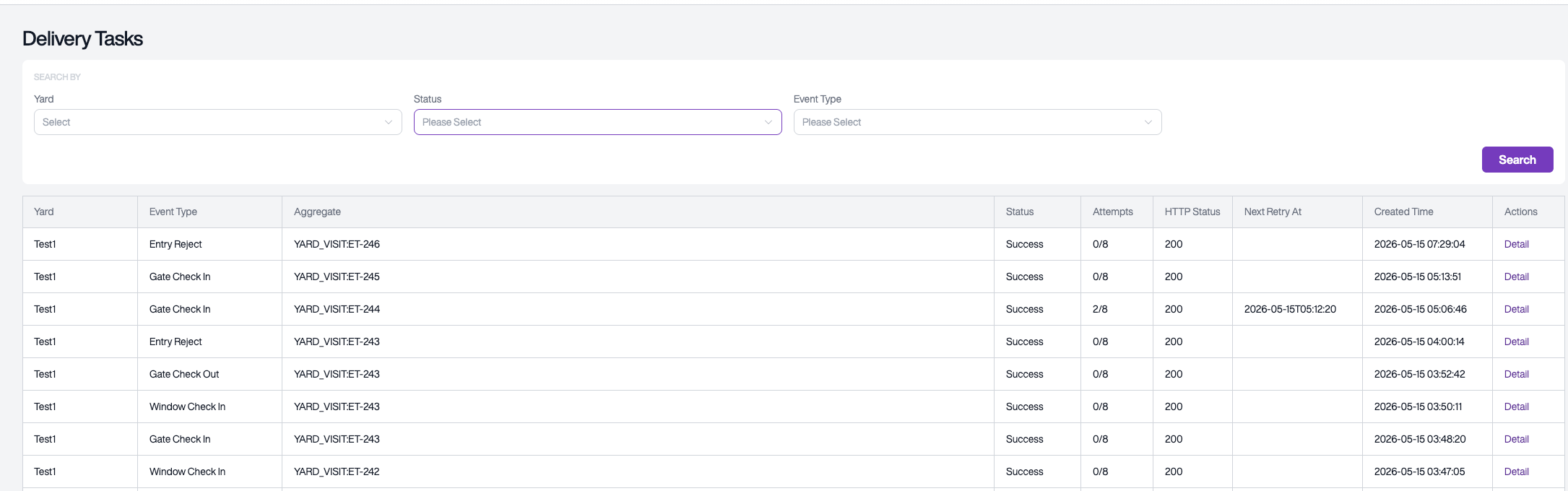

6. Viewing Delivery Records

On the Delivery Tasks page, you can view the delivery status of all notifications.

You can filter by yard, delivery status, and event type.

Delivery Status Descriptions

Status	Description
Pending	Awaiting delivery
Delivering	Currently being delivered
Success	Delivered successfully
Retrying	Awaiting retry
Failed	Delivery failed

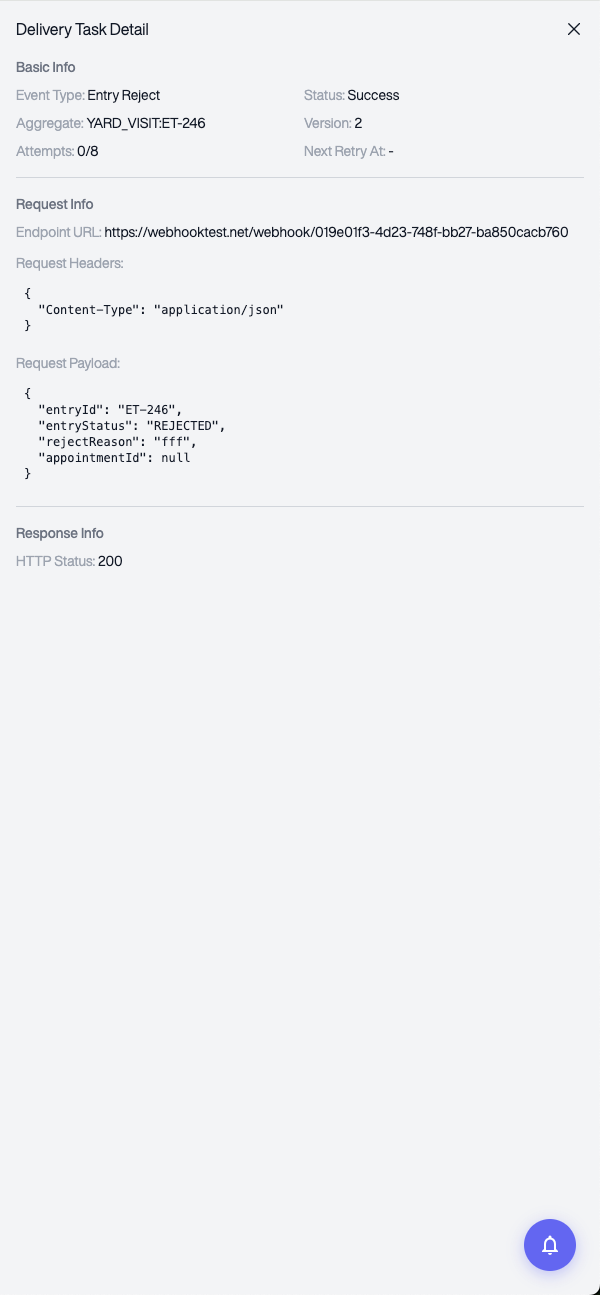

Viewing Delivery Details

Click Detail on a record to view the complete request and response information for troubleshooting.

7. Receiver Development Guidelines

7.1 Basic Requirements

Requirement	Description
Protocol	Must use HTTPS
Request Method	Accept HTTP POST
Response Requirement	Return a 2xx status code upon successful processing
Response Time	Respond within 5 seconds

7.2 Deduplication

Due to network issues or the retry mechanism, the same event may be delivered multiple times. It is recommended to use the X-YMS-Event-Id header for deduplication to ensure the same event is not processed more than once.

7.3 Sample Code

Java (Spring Boot)

Python (Flask)

7.4 Recommendations

Respond quickly: It is recommended to return a success response immediately upon receiving the notification, then process the business logic asynchronously
Log requests: Save the received headers and notification payload for future troubleshooting
Authentication: Use Custom Headers to configure authentication credentials (e.g., a Token) and verify the request source on your receiving end

8. Data Isolation

Each Webhook configuration is associated with a specific yard
Event notifications are only pushed to Webhook configurations for the corresponding yard
Disabled configurations will not receive any notifications
Multiple Webhooks can be configured for the same yard, each operating independently

9. FAQ

Q: My endpoint is not receiving notifications?

Please check the following in order: 1. Is the Webhook configuration enabled? 2. Have you subscribed to the corresponding event type? 3. Is the endpoint publicly accessible? 4. Is the endpoint using HTTPS? 5. Check the Delivery Tasks page for specific delivery status and error messages

Q: How can I verify that a notification is from YMS?

It is recommended to set a secret authentication Token via Custom Headers when creating the Webhook, and validate that value on your receiving end.

Q: Can the same event be received multiple times?

Yes, duplicate notifications may occur when delivery failures trigger retries. Use X-YMS-Event-Id for deduplication.

Q: Can I configure multiple Webhooks for the same yard?

Yes. Each Webhook can subscribe to different event types. When an event occurs, all matching configurations will receive the notification.

Q: What are the requirements for the endpoint URL?

The endpoint must use HTTPS and be publicly accessible over the internet.

10. Technical Support

If you encounter any issues during integration, please contact the YMS technical support team for assistance.
